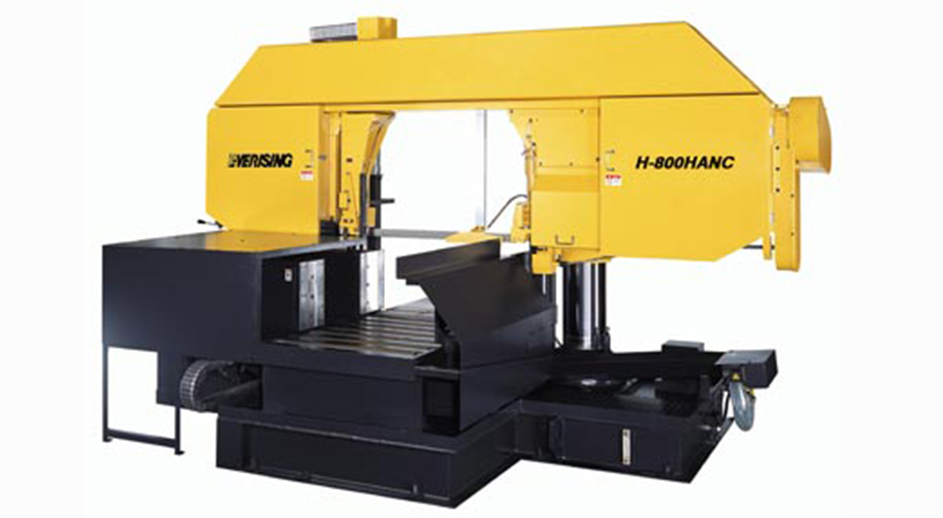

Column Type H-800HANCFully Automatic Band Saw

Model H-800HANC
Capacity 800 mm (31.5”)
800 x 800 mm (31.5”W x .31.5”H)
min. clamp width 285 mm (11.2")
Blade Speed 15-90 m/min (50-300fpm) (INVERTER)
Motor Blade Drive 11.2 kW (15 HP)
Hyd. Pump 3.7 kW (5 HP)
Coolant Pump 0.4 kW (1/2 HP)
Blade Size 8720 x 67 x 1.6 mm (343.5" x 2.63" x 0.063")
Blade Tension Hydraulic
Index Length 500 mm (20") NC control
Machine Weight 7600 kg (16720lb)
Floor Space (L x W) 4100 x 2300 mm (161.4" x 90.5")

* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.

  1. Machine design suitable for using TCT saw blade.
  2. Extreme Duty transmission.
  3. Variable blade speed controlled by inverter.
  4. Guide arm travels on linear guide way and moves in coordination with the movable vise jaw.
  5. Auto trim cut and initial cut positioning.
  6. Close approach vise reduces remnant.
  7. Hydraulic full stroke dual-vise clamping system with floating vises.
  8. PLC control, for all electric and hydraulic functions.
  9. HMI/PLC User Friendly Touch Screen with selfdiagnosis system.
  10. NC control with 9 working jobs.
  11. Adjustable hydraulic pressure & feed control on control panel.
  12. Power driven blade cleaning brush.
  13. Automatic work height control by fast approach bar sensor.
  14. Out of stock shutoff.
  15. Blade anti-vibration device.
  16. Hydraulic blade tensioning.
  17. Idler wheel motion detector with blade stalling and breakage shut off.
  18. Hydraulic actuated carbide blade guides.
  19. Roller type work table.
  20. Independent electric cabinet and control panel.
  21. Automatic chip conveyor.
  22. Flushing hose for machine cleaning.
  23. Work light.
  24. One M42 bi-metal saw blade.
  25. One set of tools and tool box.
  1. Dead roller table, 2M long.
  2. Dead roller table, 3M long.
  3. Out of square detector.
  4. Additional portable control panel.
