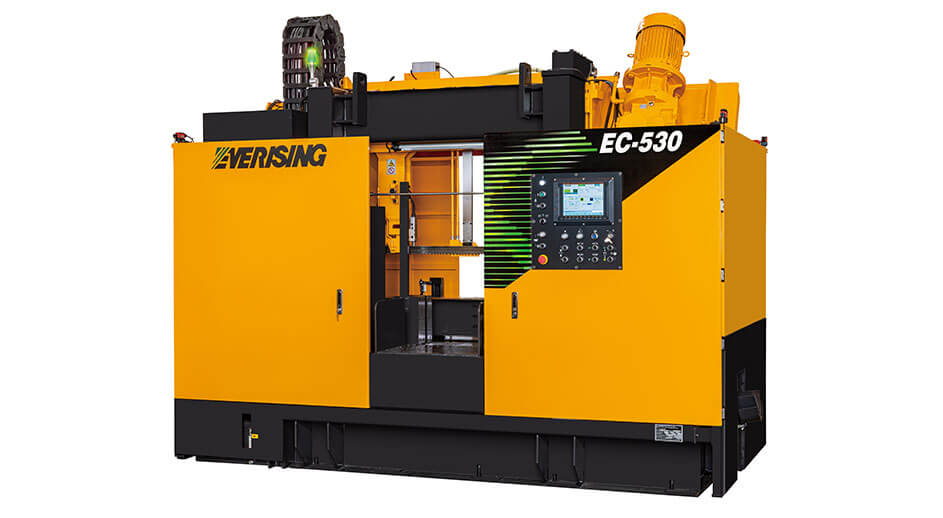

EC-530智能化帶鋸機
| 機型 | EC-530 | ||
|---|---|---|---|
| Capacity | Round | Ø 10 ~ 530 mm | |
| Square (H x W) | 30 x 30 ~ 530 x 530 mm | ||
| Bundle | Na | ||
| Blade | Size | 6,800 x 54 x1.6 mm | |
| Speed | 15 ~ 120 M/Min (50HZ/60hz) Inverter control |
||
| Tension | Hydraulic | ||
| Guide | Side | Insert plate | |
| top | Insert plate | ||
| Carbide clamping | Hydraulic | ||
| Motor | Blade Drive | 11 kw (15 HP) | |
| Hyd. Pump | 3.75 kw (5HP) | ||
| Coolant Pump | 0.75Kw (1 HP) | ||
| Wire Brush | 400 w | ||
| Power | Main voltage | AC400V +-10% (50/60Hz) | |
| Circuit voltage | Ac110v, Dc24v | ||
| Vise | Type | Split Vise | |
| Operation | HYD. Full stroke cylinder | ||
| Coolant | Tank capacity | 210 L | |
| Hyd. | Tank capacity | 60 L | |
| Blade control | Cutting feed | CNC Hydraulic Valve Control | |
| Shuttle Table Feeding | Feed type | Hydraulic | |
| Index length | 500 mm Controlled by NC | ||
| Min. cutting length | 10mm ~9999.9mm | ||
| Remain length | 110mm | ||
| Table Height | 750 mm | ||
| Quick Approach | Enforced coolant supply (Pat.P) | ||
| Auto. Chip Conveyor | Auger type | ||
| Wire brush | Motor driven Auto adjusting dual Wire brushes | ||
| Machine Weight | 6,600 kgf | ||
| Machine Size | 3,900 x 1,950 x 2,550 mm (W x L x H) | ||
* 由於本公司不斷改良研究，上述規格、尺寸與設計特性若有變更，恕不另行通知。
