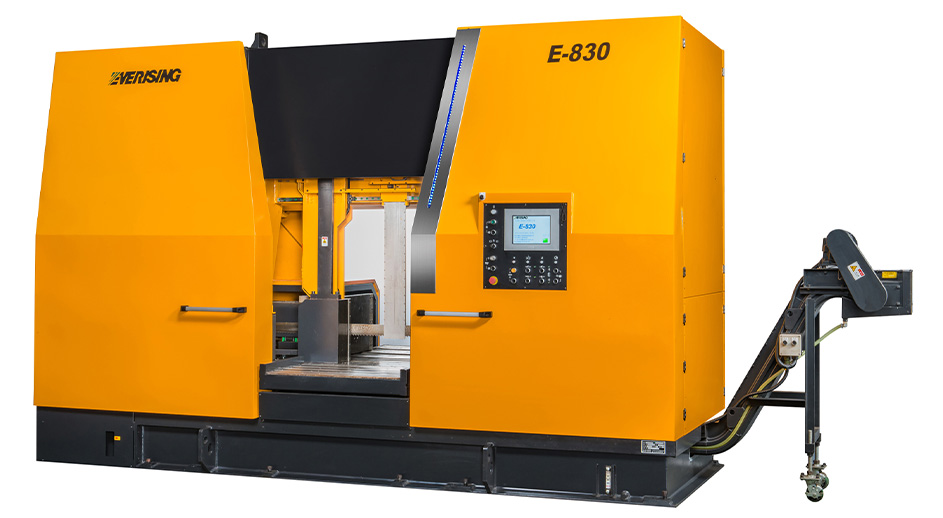

E-830Hi-Tech Band Saw
| MODEL | E-830 | |
|---|---|---|
| CAPACITY | Ø 250-830 mm | |
| 250-830 mm | ||
| BLADE SIZE | 8500 x 80 x 1.6 mm | |
| BLADE SPEED | 12-120 m/min | |
| BLADE TENSION | HYDRAULIC | |
| MOTOR | BLADE DRIVE | 18.5 kW (25 HP) |
| HYD. PUMP | 3.7 kW (5 HP) | |
| COOLANT PUMP | 375 W | |
| WIRE BRUSH | 120 W | |
| AUTO. CHIP CONVEYOR | CHAIN TYPE | |
| MACHINE DIMENSION | 5350 x 2200 x 3000 mm | |
| MACHINE WEIGHT | 13000 kgs | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
- Variable blade speed controlled by inverter.
- Guide arm travels on linear guide way and moves in coordination with the movable vise jaw.
- Technical parameters are CNC controlled for an optimal processing of workpiece.
- Out of square detector.
- Hydraulic blade tensioning.
- Idler wheel motion detector with blade stalling and breakage shutoff.
- Hydraulic actuated carbide blade guides.
- Roller type work table.
- Profile shape cutting.
- Automatic loading system.
- 2M long dead roller table – strong type.
- 2M long power roller table – hydraulic type.
