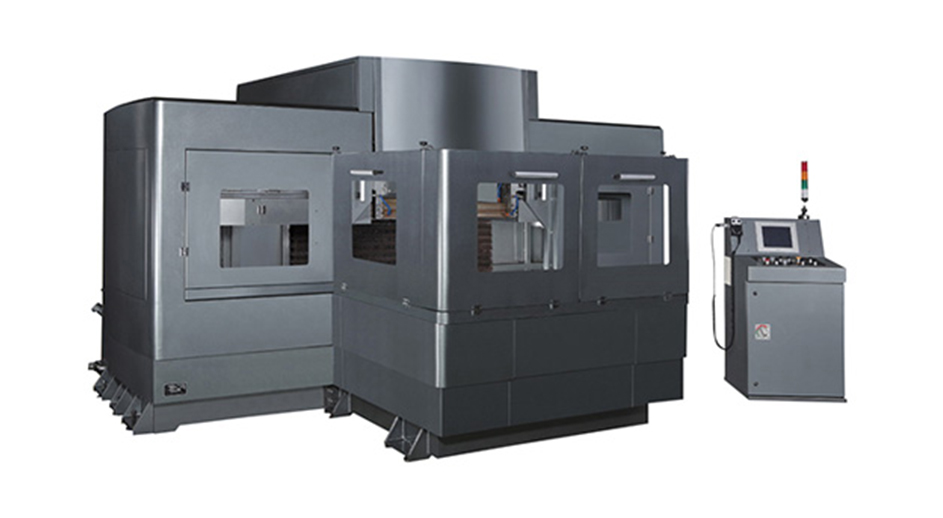

SC-860Dicing Saw Machine
| MODEL | SC-860 | |
|---|---|---|
| Cutting Capacity | 650 x 650 mm | |
| Blade size | 8950 x 100 x 1.1 mm | |
| Blade speed | 250 - 1500 m/min | |
| Motor | Blade | 11 kW (15 HP) |
| Hyd. pump | 1.5 kW (2 HP) | |
| Coolant pump | 750 W (1 HP) | |
| Table infeed | 1 kW (Servo Motor) | |
| Blade infeed | 1.5 kW (Servo Motor) | |
| Shuttle Table | Stroke | 1100 mm |
| Cutting infeed stroke | 355 mm | |
| Tension type | Hydraulic | |
| Length Index | NC | |
| Machine size (W x D x H) | 4050 x 3500 x 2250 mm | |
| Floor space | 4500 x 3600 mm | |
| Machine weight | 10000 kg | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
