| MODEL |

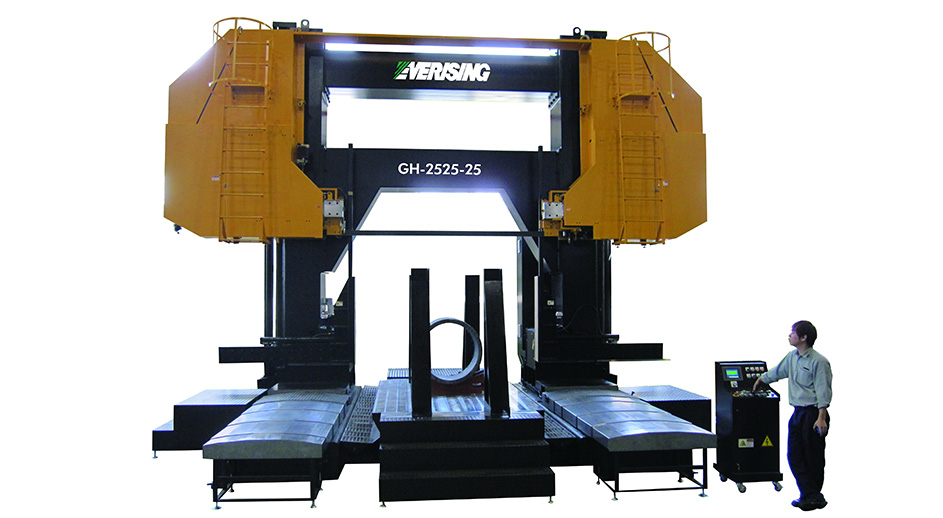

GH2525-25 |
| CUTTING RANGE SQUARE ■ |
2500 mm(W) x 2500 mm(W) |
| CUTTING RANGE ROUND ● |
2500 mm |
| BOW TRAVEL |
2500 mm |
| PORTAL STROKE |
2500 mm |
| BLADE SIZE |
17750 X 80 X 1.6 mm |
| ADJUSTABLE BLADE SPEED |
15 - 60 m/min |
| BLADE MOTOR |
30 HP |
| HYDRAULIC POWER PACK MOTOR |
10 HP |
| HYDRAULIC CHIP BRUSH MOTOR |
1/2 HP |
| SCREW TYPE CHIP CONVEYOR ( X 2 ) |
40 W |
| CHAIN TYPE CHIP CONVEYOR |
1/4 HP |
| OVERALL DIMENSIONS |
7450 mm X 6250 mm |
| OVERALL HEIGHT |
6500 mm |
| OVERALL WEIGHT |
38000 kg |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
