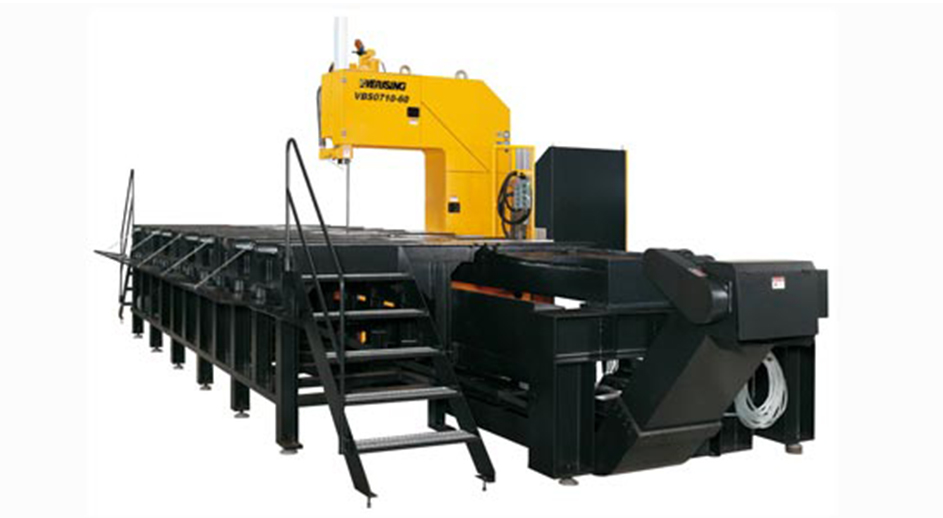

VBS Type VBS0707Vertical Band Saw
| Model | VBS0707 | |
|---|---|---|
| Cutting height | 700 mm (27.6”) | |
| Cutting depth | 700 mm (27.6”) | |
| Cutting length | 3/4.5/6 M | |
| Table support width | Outer table | 1600 mm (63”) |
| Inner table | 700 mm (27.6”) | |
| Blade size | 6800 x 54 x 1.6 mm (267.7” x 2.1” x 0.063”) | |
| Blade speed | 15-75 m/min (50 to 250 fpm) | |
| Cutting feed | Servomotor (2-500 mm/min) | |
| Motor | Blade drive | 5.5 kW (7.5 HP) |
| Hydraulic pump | 1.5 kW (2 HP) x2 | |
| Coolant pump | 0.75 kW (1 HP) | |
| Feed servomotor | 1 kW | |
| Table height | 1500 mm (59.1”) | |
| Floor space | 10100L x 4100W mm (379.6” x 161.4”) (6M) | |
| Machine height | 3700 mm (145.7”) | |
| Machine weight (approx.) | 15000 kgs (33069 lbs) (6M) | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
