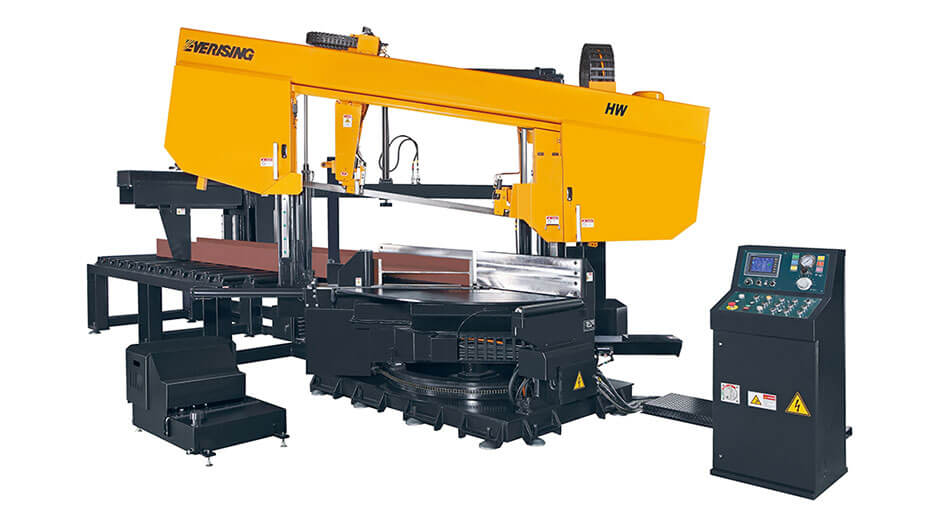

Heavy Duty Mitre Cutting HW450/650IIMiter Band Saw
| Model | HW450/650II | ||
|---|---|---|---|
| Capacity | 90° | 490 mm | |
| 650 x 450 mm (W x H) | |||
| ±45° | 390 mm | ||
| 390 x 420 mm (W x H) | |||
| -60° | 260 mm | ||
| 260 x 420 mm (W x H) | |||
| Blade Speed | 20 ~ 100 m/min | ||
| Blade Size | 7200 x 41 x 1.3 mm | ||
| Motor | Blade | 3.7 kW (5 HP) | |
| Hydraulic Pump | 1.5 kW (2 HP) | ||
| Oil Mist | 180 W (1/4 HP) | ||
| Wire Brush | 90 W (1/8HP) | ||
| Blade Tension | Hydraulic | ||
| Angle Swivel | Powerful with LED Display | ||
| Table Height | 890 mm | ||
| Vise Clamping Type | Hydraulic (Full Stroke) | ||
| Machine Weight | 4500 kgs | ||
| Floor Space ( W x D) | 3500 x 3200 mm | ||
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
- Ampere-meter and protecting detector for saw blade.
- Bi-direction angle cutting, -60° ~ 90° ~ 45°
- Lifting cylinder for both column.
- Feed pressure compensation unit.
- Hydraulic blade tension.
- PLC control for all electric and hydraulic functions.
- Infinitely variable blade speed control by inverter.
- Vertical clamping device.
- Full stroke vise clamping system.
- Movable guide arm moves on linear guide way, moving with vise.
- Powered angle setting with displayer.
- Independent electric cabinet and control panel.
- Roller bearing carbide blade guide system with Hydraulic clamped.
- Idler wheel motion detector with blade stalling and breakage shut-off.
- Projection light. (Laser light)
- Automatic chip conveyor.
- Cutting lubrication by oil mist.
- One M42 bi-metal saw blade.
- One set of tools and tools box.
- Dead roller table, 2 M long.
- Out of square detector.
