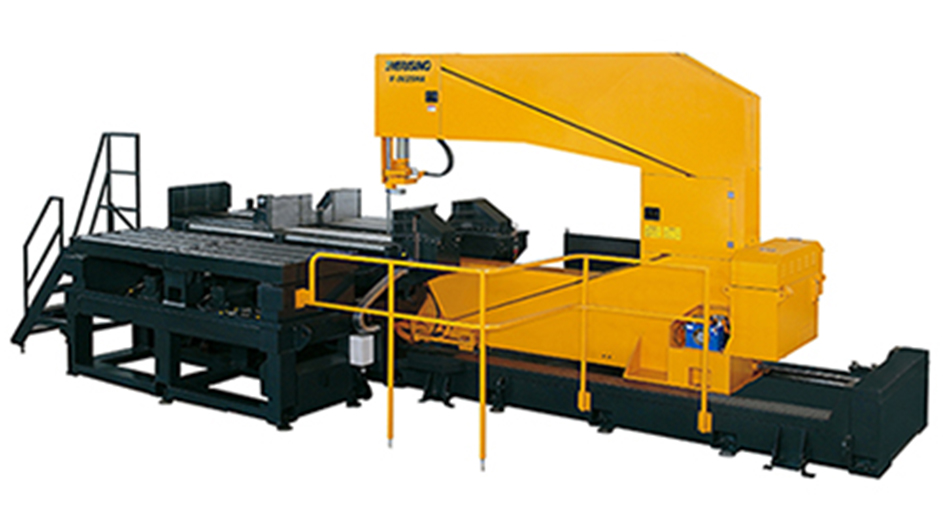

V Type V-0422Vertical Band Saw
| Model | V-0422 | |
|---|---|---|
| Cutting capacity (H x D) | 400 mm x 2200 mm (15.7" x 86.6") min. clamp width 1200 mm (47.2") |
|
| Blade Speed | 15-75 m/min (50 to 250 fpm) | |
| Motor | Blade drive | 7.5 kW (10 HP) |
| Hydraulic pump | 2.2 kW (3 HP) | |
| Coolant pump | 0.6 kW (3/4 HP) | |
| Chip conveyor | 0.4 kW (1/2 HP) | |
| Blade Size | 9940 x 54 x 1.6mm (391.3" x 2" x 0.063") | |
| Shuttle vise stroke | 400 mm (15.7") (optional) | |
| Saw frame feed | Servomotor | |
| Saw frame shuttle stroke | 2400 mm (94.4") | |
| Table height | 1600 mm (63") | |
| Machine weight | 16500 kgs (36300 lbs) (SA) 17500 kgs (38500 lbs) (HA) |
|
| Floor space without roller table (LxDxH) | 3100 x 8150 x 3700 mm (SA) (122" x 320.8" x 145.6") (SA) |
|
| 3400 x 8150 x 3700 mm (HA) (133.8" x 320.8" x 145.6") (HA) |
||
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
