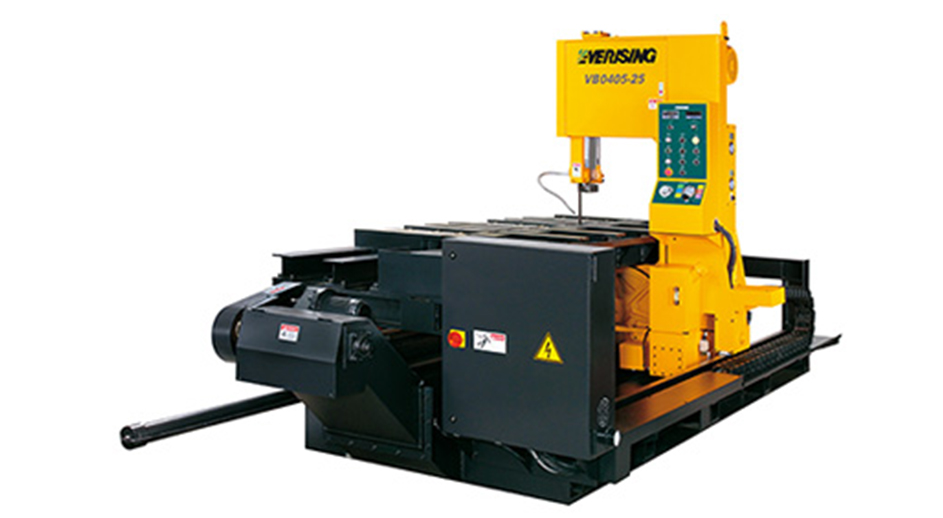

VB Type VB0405Vertical Band Saw
| Model | VB0405 | |
|---|---|---|
| Cutting height | 400 mm (15.7") | |
| Cutting depth | 500 mm (19.7") | |
| Cutting length | 1.5/2.5 M | |
| Table support width | Outer table | 550 mm (21.7") |
| Inner table | 500 mm (19.7") | |
| Blade size | 4750 x 41 x 1.3 mm (187"x1.6"x0.05") | |
| Blade speed | 20-100 m/min (65 to 330 fpm) | |
| Cutting feed | Hydraulic | |
| Motor | Blade drive | 5.5 kW (7.5 HP) |
| Hydraulic pump | 1.5 kW (2 HP) | |
| Coolant pump | 0.2 kW (1/4 HP) | |
| Table height | 1060 mm (41.7") | |
| Machine height | 2500 mm (98.4") | |
| Floor space |
3850L x 2100W mm (151.6" x 82.7") (1.5M) |
|
| Machine weight (approx.) | 6000 kgs (13227 lbs) (1.5M) 8000 kgs (17637 lbs) (2.5M) |
|
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
