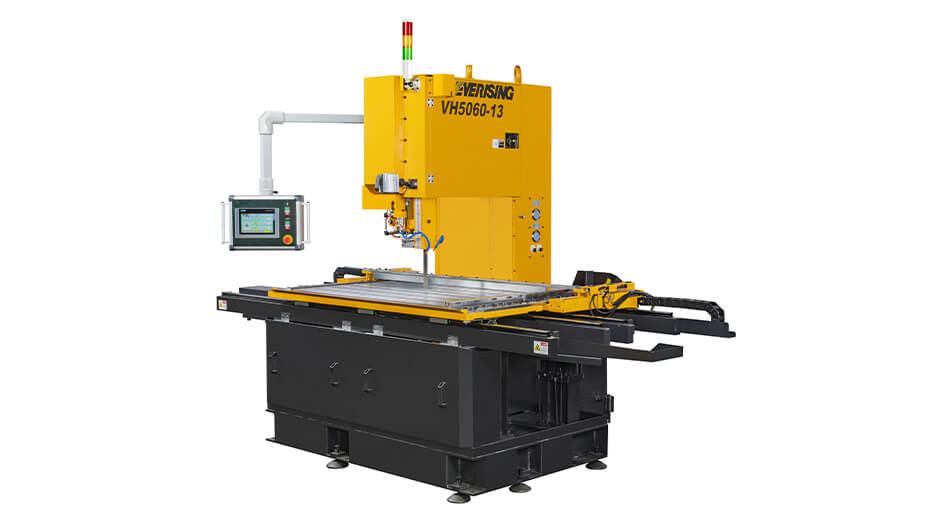

VH Type VH-5060-13Vertical Band Saw
| Model | VH5060-13 | VH5060-10 | VH5060-08 |
|---|---|---|---|
| Capacity High（mm） | 500mm | 500mm | 500mm |
| Capacity Width（mm） | 600mm | 600mm | 600mm |
| Blade Speed (m/min) | 15-75M/min | 15-75M/min | 15-75M/min |
| Blade size (mm) | 4880 x 41 x 1.3mm | 4880 x 41 x 1.3mm | 4880 x 41 x 1.3mm |
| Feeding length ( mm) | 0 ~ 1300mm | 0 ~ 1000mm | 0 ~ 800mm |
| Blade motor (kW) | 3.7kw | 3.7kw | 3.7kw |
| Hydraulic pump motor (kW) | 0.4kw | 0.4kw | 0.4kw |
| Cutting fluid pump (kW) | 0.2kw | 0.2kw | 0.1kw |
| Auto chip conveyor motor (kW) | 0.4kw | 0.4kw | 0.4kw |
| Servo Motor (kW) | 1.5kw | 1.5kw | 1.5kw |
| Table height （mm） | 1030mm | 1030mm | 1030mm |
| Warning light | LED Tricolor Light | LED Tricolor Light | LED Tricolor Light |
| Working lamp | Quartz Lamp | Quartz Lamp | Quartz Lamp |
| Cutting line | Laser Light | Laser Light | Laser Light |
| Control system | Hanhing Control Box | Hanhing Control Box | Hanhing Control Box |
| Touch screen | 9 inch | 9 inch | 9 inch |
| Machine Dimension (mm) | (W)4030 x (D)2550 x (H)2670mm | (W)3620 x (D)2550 x (H)2670mm | (W)3020 x (D)2550 x (H)2670mm |
| Machine Weight (kg) | 3800kg | 3450kg | 3300kg |
