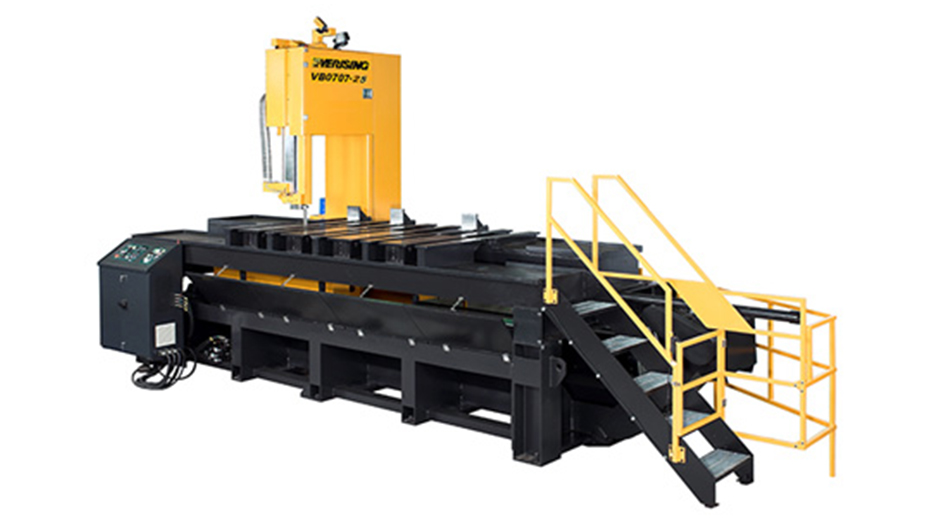

VB Type VB0707Vertical Band Saw

Model VB0707
Cutting height 700 mm (27.6")
Cutting depth 700 mm (27.6")
Cutting length 1.5/2.5 M
Table support width Outer table 700 mm (27.6")
Inner table 700 mm (27.6")
Blade size 6800 x 54 x 1.6 mm (267.7" x 2" x 0.06")
Blade speed 15-75 m/min (50 to 250 fpm)
Cutting feed Hydraulic
Motor Blade drive 5.5 kW (7.5 HP)
Hydraulic pump 1.5 kW (2 HP)
Coolant pump 0.7 kW (1 HP)
Table height 1600 mm (63")
Machine height 3700 mm (145.7”)
Floor space 6400L x 2550W mm (252” x 100.4”) (1.5M)
7000L x 2550W mm (275.6” x 100.4”) (2.5M)
Machine weight (approx.) 9000 kgs (19842 lbs) (1.5M)
11500 kgs (25353 lbs) (2.5M)

* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
