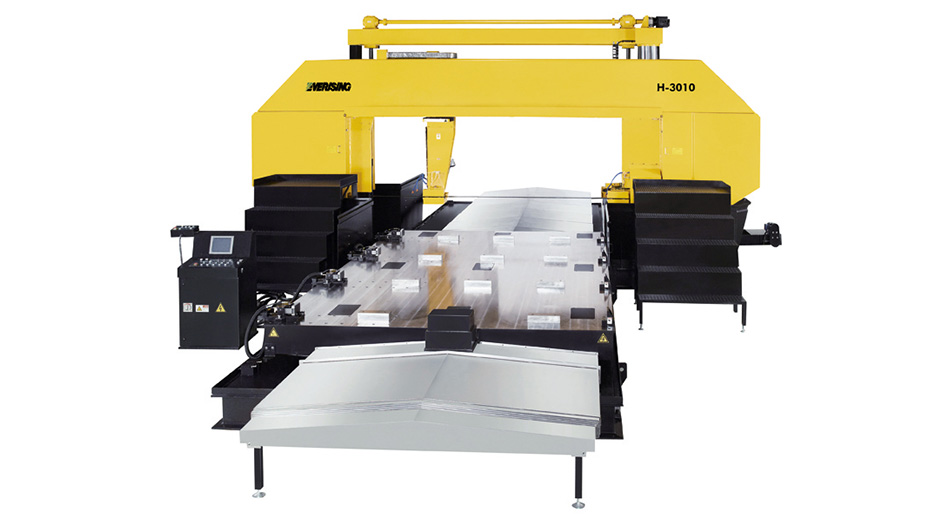

Aluminium Slab / Bar H-3010Aluminium Cutting Band Saw
| Model | H-3010 | |
|---|---|---|
| Capacity | 1000(H) x 3000(W) x 5000(L) mm | |
| Blade size | 16940 x 80 x 1.6 mm | |
| Blade speed | 300 - 1000 m/min | |
| Motor | Blade | 22 kW ( 30 HP) |
| Hydraulic pump | 5.5 kW ( 7.5 HP) | |
| Feed | 2 kW ( 3 HP) | |
| Cutting fluid pump | 360 W ( 1/2 HP) | |
| Table | Feed stroke | 5900 mm |
| Table height | 750 mm | |
| Machine dimension (W x D x H) | 7950 x 13400 x 5300 mm | |
| Floor space | 7950 x 13400 mm | |
| Machine weight | 40000 kg | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
